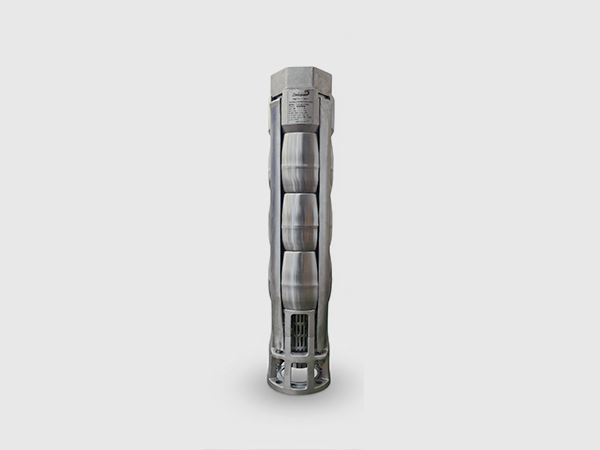

Submersible Pump

Sagar Polytechnik Limited, today, is recognized in the market for its high quality standard products, efficient and tougher technology new product developments and business practices.
Today we are proud to prove it once again with development of fully stainless steel submersible pump products. We have once again tried to achieve the international bench mark standards for these products. We have successfully developed fully SS pumps in 304 grades. Made from most critical design and process, We have made it simple and easy for a customer to use a non corrosive, highly technical and sturdy but light weight pumps to fulfill their day to day requirements of water.
About the pump :- We have offered a comprehensive range of full SS pump in V-4, V-6 & V-8 section, with a very sturdy and tough technology product. It is designed meticulously to lowest friction and highest performance with longer trouble free working life. The use of SS 304 grades ensure non corrosion & longer life. Guide bushes and rings are elastic nature, allow the sand particles to flow along with the water discharge, hence preventing the abrasion of bush and self ensuring low maintenance of the pump. Even the light weight and self balanced impellers ensure high efficiency and longer life motor as well.

Enquire Now
Download Catalogue
  • Applications
  • Benefits
  • Technical Details

Applications:

  • Raw Water Supply
  • Irrigation Systems
  • Booster Systems
  • Ground Water Supply
  • Sprinklers Drip Systems
  • Marine Applications
  • Chemical Industries
  • Water Treatment Plants
  • Salty Water Applications Motors with 60 Hz Design Available in V4/V6.

Benefits:

Industrial

Our pipes, hoses & fittings are specially design for industrial usage. Our product gives best performance while use in the factory. Due to high durability & flexibility our pipes & hoses are famous for industrial usage.

Quick assembly & maintenance free

The pipes, hoses & fittings are light in weight which results in extensive saving of time and laboring being Abrasion/Chemical resistance, free from rusting, pitting or scaling and maintenance-free.

Strong & Stiff

The pipes are specially designed for desire application which meets the required results as follows:

  • Superior strength with stiffness.
  • Flexible Compared to strength & stiffness.

Technical Data

  • Standard : Generally Conforming to EN 50618
  • Voltage Rating : AC 0.6 I 1.0 kV
  • PV - System Voltage : DC 1.8 kV
  • Conductor : Fine Wire Tinned Copper Conductor according to IEC 60228 cl. 5.
  • Insulation : XLPO (cross linkable, halogen free, flame retardant) compound for core insulation.
  • Sheath : XLPO (cross linkable, halogen free, flame retardant) compound for Sheath over insulation.
  • Cable Colour : Red, Black, Black with Red Strip

SAGAR® Single Union Ball Valves Technical Specifications:

Technical Specifications
Nominal Dia V4 V6 V8
Maximum Outer Diameter 98mm 145mm 196mm
Power Range 0.5 HP to 10.0 HP
(0.37 kW to 7.5 kW)		 3.0 HP to 50.0 HP
(2.2 kW to 37.0 kW)		 10.0 HP to 100.0 HP
(7.5 kW to 75.0 kW)
Type of Motor Asynchronous induction Motor Asynchronous Induction Motor Asynchronous Induction Motor
Speed 3000rpm 3000rpm 3000rpm
Versions 230V (+6% to -15%) 1 PH
415V (+6% to -15%), 3PH		 415V (+6% to -15%) 415V (+6% to -15%)
Class of Insulation B B B
Type of Winding Wet, Rewindable Wet, Rewindable Wet, Rewindable
Degree of Protection IP68 IP68 IP68
Direction of Rotation Anti Clockwise Observed
When view from Top		 Anti Clockwise Observed
When view from Top		 Anti Clockwise Observed
When view from Top
Type of Duty Sl (continuous) Sl (continuous) Sl (continuous)
Maximum Liquid Temperature 45·c 45·c 45·c
Shaft Type Splined as per NEMA Splined as per NEMA Splined as per NEMA
Mounting Standard NEMA Standard NEMA Standard NEMA Standard
Method of Starting DOLJSD/ Auto-Transformer
Soft Starter		 DOLJSD/ Auto-Transformer
Soft Starter		 DOLJSD/ Auto-Transformer
Soft Starter
Head Range Upto 649 meter Upto 660 meter Upto 400 meter
Flow Rate 225 LPM/13.5 M3/H 1400 LPM/84.0 M3/H 2100 LPM/126.0 M3/H
Delivery Size 32.0MM/l .25", 40.0MM / 1.5",
50.0MM/2.0"		 65.0MM/2.5", 80.0MM I 3.0",
100.0MM/4.0"		 125.0MM/5.0"
Read More

SPF 2
4" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V4 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  32MM(1.25") FLOWQ
    KW HP   m3/h                              L/min 0 0.8 1.2 1.5 2.1 2.5 2.8
          0 13 20 25 35 42 47
1 SPF2-0506 0.37 0.5 6 H (m) 34 30 27 24 18 12 6
2 SPF2-0509 0.37 0.5 9 51 45 41 36 27 18 9
3 SPF2-7513 0.55 0.75 13 73 65 59 52 39 26 13
4 SPF2-1018 0.75 1 18 101 90 81 72 54 36 18
5 SPF2-1523 1.1 1.5 23 129 115 104 92 69 46 23
6 SPF2-2028 1.5 2 28 158 140 126 112 84 56 28
7 SPF2-2033 1.5 2 33 186 165 149 132 99 66 33
8 SPF2-3040 2.2 3 40 225 200 180 160 120 80 40
9 SPF2-3048 2.2 3 48 270 240 216 192 144 96 48
10 SPF2-4055 3 4 55 309 275 248 220 165 110 55
11 SPF2-4065 3 4 65 366 325 293 260 195 130 65
12 SPF2-5075 3.7 5 75 422 375 338 300 225 150 75
13 SPF2-5090 3.7 5 90 506 450 405 360 270 180 90
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  1 PHASE  3 PHASE 1 PHASE  3 PHASE
SPF2-0506 5.3 - 16 - 708   441   292
SPF2-0509 5.3 - 16 - 776   466   360
SPF2-7513 6.2 - 19 - 892   416   451
SPF2-1018 7.5 2.7 23 9 1031 1031 416 466 565
SPF2-1523 10.5 4 32 15 1259 1259 516 516 743
SPF2-2028 13.8 4.8 41 19 1453 1453 596 596 857
SPF2-2033 13.8 4.8 41 19 1567 1567 596 596 971
SPF2-3040 19.8 6.9 59 28 1785 1785 655 655 1130
SPF2-3048 19.8 6.9 59 28 1998 1998 655 655 1343
SPF2-4055 26 9 78 36 2207 2207 705 705 1502
SPF2-4065 26 9 78 36 2435 2435 705 705 1730
SPF2-5075 33 10.6 99 42 2753 2753 765 765 1988
SPF2-5090 33 10.6 99 42 3095 3095 765 765 2330

SPF 3
4" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V4 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  32MM(1.25") FLOWQ
    KW HP   m3/h                              L/min 0 0.8 1.5 2 2.5 3.1 3.5 3.8
          0 13 25 34 41 51 59 64
1 SPF3-0506  0.37 0.5 6 H (m) 36 33 30 27 24 18 12 6
2 SPF3-7509  0.55 0.75 9 54 50 45 41 36 27 18 9
3 SPF3-1012 0.75 1 12 72 66 60 54 48 36 24 12
4 SPF3-1515  1.1 1.5 15 90 83 75 68 60 45 30 15
5 SPF3-1518  1.1 1.5 18 108 99 90 81 72 54 36 18
6 SPF3-2022 1.5 2 22 132 121 110 99 88 66 44 22
7 SPF3-2025  1.5 2 25 150 138 125 113 100 75 50 25
8 SPF3-3029  2.2 3 29 174 160 145 131 116 87 58 29
9 SPF3-3033  2.2 3 33 198 182 165 149 132 99 66 33
10 SPF3-4039 3 4 39 226 211 195 176 156 117 78 39
11 SPF3-4045  3 4 45 261 243 225 203 180 135 90 45
12 SPF3-5052 SPF3-5060 3.7 5 52 302 281 260 234 208 156 104 52
13 SPF2-5090 3.7 5 60 348 324 300 270 240 180 120 60
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  1 PHASE  3 PHASE 1 PHASE  3 PHASE
SPF3-0506 5.3   16   708   416   292
SPF3-7509 6.2   19   801   441   360
SPF3-1012 7.5 2.7 23 9 895 895 466 466 429
SPF3-1515 10.5 4 32 15 1013 1013 516 516 497
SPF3-1518 10.5 4 32 15 1081 1081 516 516 565
SPF3-2022 13.8 4.8 41 19 1317 1317 596 596 721
SPF3-2025 13.8 4.8 41 19 1385 1385 596 596 789
SPF3-3029 19.8 6.9 59 28 1535 1535 655 655 880
SPF3-3033 19.8 6.9 59 28 1626 1626 655 655 971
SPF3-4039 26 9 78 36 1812 1812 705 705 1107
SPF3-4045 26 9 78 36 1949 1949 705 705 1244
SPF3-5052 33 10.6 99 42 2139 2199 705 765 1434
SPF3-5060 33 10.6 99 42 2321 2381 705 765 1616

SPF 5
4" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V4 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  40MM(1.50") FLOWQ
    KW HP   m3/h                              L/min 0 1.3 2.4 3.6 4.2 4.8 5.4 6
          0 22 40 60 70 80 90 100
1 SPF5-0504  0.37 0.5 4 H (m) 24 22 20 18 16 18 8 4
2 SPF5-7506  0.55 0.75 6 36 33 30 27 24 36 12 6
3 SPF5-1008 0.75 1 8 48 44 40 36 32 63 16 8
4 SPF5-1512  1.1 1.5 12 72 66 60 54 48 99 24 12
5 SPF5-2017  1.5 2 17 102 94 85 77 68 132 34 17
6 SPF5-3021 2.2 3 21 126 116 105 95 84 180 42 21
7 SPF5-3025  2.2 3 25 150 138 125 113 100 255 50 25
8 SPF5-4033   3 4 33 198 182 165 149 132 12 66 33
9 SPF5-5038 3.7 5 38 220 205 190 171 152 24 76 38
10 SPF5-5044 3.7 5 44 255 238 220 198 176 51 88 44
11 SPF5-7552  5.5 7.5 52 302 281 260 234 208 75 104 52
12 SPF5-7560  5.5 7.5 60 348 324 300 270 240 114 120 60
13 SPF5-1075 7.5 10 75 435 405 375 338 300 156 150 75
14 SPF5-1085  7.5 10 85 493 459 425 383 340 225 170 85
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  1 PHASE  3 PHASE 1 PHASE  3 PHASE
SPF5-0504  5.3   16   663   416   247
SPF5-7506  6.2   19   733   441   292
SPF5-1008 7.5 2.7 23 9 804 804 466 466 338
SPF5-1512  10.5 4 32 15 945 945 516 516 429
SPF5-2017  13.8 4.8 41 19 1138 1138 596 596 542
SPF5-3021 19.8 6.9 59 28 1353 1353 655 655 698
SPF5-3025  19.8 6.9 59 28 1444 1444 655 655 789
SPF5-4033   26 9 78 36 1676 1676 705 705 971
SPF5-5038 33 10.6 99 42 1850 1850 765 765 1085
SPF5-5044 33 10.6 99 42 1986 1986 765 765 1221
SPF5-7552    15.5   62   2289   855 1434
SPF5-7560    15.5   62   2471   855 1616
SPF5-1075   19.5   78   2923   935 1988
SPF5-1085    19.5   78   3151   935 2216

SPF 7
4" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V4 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  50MM(2.0") FLOWQ
    KW HP   m3/h                              L/min 0 1.8 3.6 5.4 6.9 8.1 9 9.6
          0 30 60 90 115 135 150 160
1 SPF7-1007 0.75 1 7 H (m) 39 35 32 28 25 21 18 14
2 SPF7-1511 1.1 1.5 11 62 55 50 44 39 33 28 22
3 SPF7-2015 1.5 2 15 84 75 68 60 53 45 38 30
4 SPF7-3020 2.2 3 20 112 100 90 80 70 60 50 40
5 SPF7-4025 3 4 25 140 125 113 100 88 75 63 50
6 SPF7-5035 3.7 5 35 196 175 158 140 123 105 88 70
7 SPF7-6040 4.5 6 40 224 200 180 160 140 120 100 80
8 SPF7-7550 5.5 7.5 50 280 250 225 200 175 150 125 100
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  1 PHASE  3 PHASE 1 PHASE  3 PHASE
SPF7-1007 7.5 2.7 23 9 998 998 466 466 532
SPF7-1511 10.5 4 32 15 1220 1220 516 516 704
SPF7-2015 13.8 4.8 41 19 1472 1472 596 596 876
SPF7-3020 19.8 6.9 59 28 1746 1746 655 655 1091
SPF7-4025 26 9 78 36 2011 2011 705 705 1306
SPF7-5035 33 10.6 99 42 2501 2501 765 765 1736
SPF7-6040   12.6   50   2746   795 1951
SPF7-7550   15.5   62   3235   854 2381

SPF 8
4" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V4 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  50MM(2.0") FLOWQ
    KW HP   m3/h                              L/min 0 2.7 4.9 6.7 8.1 9.3 10.2 10.8
          0 45 82 112 135 155 170 180
1 SPF8-1005 0.75 1 5 H (m) 30 25 23 20 18 15 13 10
2 SPF8-1507 1.1 1.5 7 41 35 32 28 25 21 18 14
3 SPF8-2010 1.5 2 10 59 50 45 40 35 30 25 20
4 SPF8-3012 2.2 3 12 71 60 54 48 42 36 30 24
5 SPF8-3015 2.2 3 15 89 75 68 60 53 45 38 30
6 SPF8-4018 3 4 18 106 90 81 72 63 54 45 36
7 SPF8-5021 3.7 5 21 124 105 95 84 74 63 53 42
8 SPF8-5025 3.7 5 25 148 125 113 100 88 75 63 50
9 SPF8-7530 5.5 7.5 30 177 150 135 120 105 90 75 60
10 SPF8-7537 5.5 7.5 37 218 185 167 148 130 111 93 74
11 SPF8-1044  7.5 10 44 260 220 198 176 154 132 110 88
12 SPF8-1050  7.5 10 50 295 250 225 200 175 150 125 100
13 SPF8-12558  9.3 12.5 58 342 290 261 232 203 174 145 116
14 SPF8-1566  11 15 66 389 330 297 264 231 198 165 132
15 SPF8-1573  11 15 73 431 365 329 292 256 219 183 146
16 SPF8-1582  11 15 82 484 410 369 328 287 246 205 164
17 SPF8-2091  15 20 91 537 455 410 364 319 273 228 182
18 SPF8-20100  15 20 100 590 500 450 400 350 300 250 200
19 SPF8-25110  18.5 25 110 649 550 495 440 385 330 275 220

*MARKED MODELS ARE WITH V6 MOTOR

MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  1 PHASE  3 PHASE 1 PHASE  3 PHASE
SPF8-1005 7.5 2.7 23 9 912 912 466 466 446
SPF8-1507 10.5 4 32 15 1048 1048 516 516 532
SPF8-2010 13.8 4.8 41 19 1257 1257 596 596 661
SPF8-3012 19.8 6.9 59 28 1402 1402 655 655 747
SPF8-3015 19.8 6.9 59 28 1531 1531 655 655 876
SPF8-4018 26 9 78 36 1710 1710 705 705 1005
SPF8-5021 33 10.6 99 42 1899 1899 765 765 1134
SPF8-5025 33 10.6 99 42 2071 2071 765 765 1306
SPF8-7530   15.5   62   2376   855 1521
SPF8-7537   15.5   62   2677   855 1822
SPF8-1044    19.5   78   3058   935 2123
SPF8-1050    19.5   78   3316   935 2381
SPF8-12558    25   84   3565   840 2725
SPF8-1566    29   102   3949   880 3069
SPF8-1573    29   102   4250   880 3370
SPF8-1582    29   102   4637   880 3757
SPF8-2091    39   148   5064   920 4144
SPF8-20100    39   148   5451   920 4531
SPF8-25110    48   188   5991   1030 4961

.NOTE ABOVE MODELS ALSO AVAILABLE IN OILFILL UP TO 7.5 HP
*MARKED MODELS ARE WITH V6 MOTOR

SPF 9
4" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V4 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  50MM(2.0") FLOWQ
    KW HP   m3/h                              L/min 0 3.6 5.4 6.6 7.5 9 10.5 12 13.5
          0 60 90 110 125 150 175 200 225
1 SPF9-1004  6.75 1 4 H (m) 24 23 22 21 20 21 14 9 2
2 SPF9-1005  0.75 1 5 30 29 28 26 25 43 17 11 3
3 SPF9-1507 1.1 1.5 7 42 41 39 37 34 64 24 15 4
4 SPF9-2010  1.5 2 10 60 58 56 52 49 17 34 22 5
5 SPF9-3014  2.2 3 14 83 81 78 73 69 30 48 31 7
6 SPF9-3015  2.2 3 15 89 87 83 78 74 60 51 33 8
7 SPF9-4018 3 4 18 107 105 100 94 88 77 61 40 9
8 SPF9-4020  3 4 20 119 116 111 104 98 85 68 44 10
9 SPF9-5022  3.7 5 22 131 128 122 115 108 94 75 48 11
10 SPF9-5024 3.7 5 24 143 140 133 125 118 102 82 53 12
11 SPF9-6027  4.5 6 27 161 157 150 141 132 123 92 59 14
12 SPF9-6029  4.5 6 29 173 169 161 151 142 153 99 64 15
13 SPF9-7534  5.5 7.5 34 203 198 189 177 167 115 116 75 17
14 SPF9-7536 5.5 7.5 36 215 210 200 188 176 145 122 79 18
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  1 PHASE  3 PHASE 1 PHASE  3 PHASE
SPF9-1004  7.5 2.7 23 9 911 911 466 466 445
SPF9-1005  7.5 2.7 23 9 962 962 466 466 496
SPF9-1507 10.5 4 32 15 1114 1114 516 516 598
SPF9-2010  13.8 4.8 41 19 1347 1347 596 596 751
SPF9-3014  19.8 6.9 59 28 1610 1610 655 655 955
SPF9-3015  19.8 6.9 59 28 1661 1661 655 655 1006
SPF9-4018 26 9 78 36 1711 1711 705 705 1006
SPF9-4020  26 9 78 36 1966 1966 705 705 1261
SPF9-5022  33 10.6 99 42 2128 2128 765 765 1363
SPF9-5024 33 10.6 99 42 2230 2230 765 765 1465
SPF9-6027    12.6   50   2413   795 1618
SPF9-6029    12.6   50   2515   795 1720
SPF9-7534    15.5   62   2830   855 1975
SPF9-7536   15.5   62   2932   855 2077

NOTE ABOVE MODELS ALSO AVAILABLE IN OILFILL UP TO 7.5 HP

SPF 17
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  65MM(2.5") FLOWQ
    KW HP   m3/h                              L/min 0 8.4 12.6 15 17.1 18.9 20.7 22.5 24 24.9
          0 140 210 250 285 315 345 375 400 415
1 SPF17-0303 2.2 3 3 H (m) 33 30 27 24 21 18 15 12 8 6
2 SPF17-0304 2.2 3 4 44 40 36 32 28 24 20 16 12 8
3 SPF17-0405 3 4 5 55 50 45 40 35 30 25 20 15 10
4 SPF17-0506 3.7 5 6 66 60 54 48 42 36 30 24 18 12
5 SPF17-0507 3.7 5 7 77 70 63 56 49 42 35 28 21 14
6 SPF17-7508 5.5 7.5 8 88 80 72 64 56 48 40 32 24 16
7 SPF17-7509 5.5 7.5 9 99 90 81 72 63 54 45 36 27 18
8 SPF17-7510 5.5 7.5 10 110 100 90 80 70 60 50 40 30 20
9 SPF17-1011 7.5 10 11 121 110 99 88 77 66 55 44 33 22
10 SPF17-1012 7.5 10 12 132 120 108 96 84 72 60 48 36 24
11 SPF17-1013 7.5 10 13 143 130 117 104 91 78 65 52 39 26
12 SPF17-12514 9.3 12.5 14 154 140 126 112 98 84 70 56 42 28
13 SPF17-12515 9.3 12.5 15 165 150 135 120 105 90 75 60 45 30
14 SPF17-12516 9.3 12.5 16 176 160 144 128 112 96 80 64 48 32
15 SPF17-12517 9.3 12.5 17 187 170 153 136 119 102 85 68 51 34
16 SPF17-1518 11 15 18 198 180 162 144 126 108 90 72 54 36
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF17-0303   6.5   28 1114 655 459
SPF17-0304   6.5   28 1176 655 521
SPF17-0405   8.5   36 1287 705 582
SPF17-0506   10   42 1384 740 644
SPF17-0507   10   42 1445 740 705
SPF17-7508   14.5   52 1537 770 767
SPF17-7509   14.5   52 1598 770 828
SPF17-7510   14.5   52 1660 770 890
SPF17-1011   19.5   70 1751 800 951
SPF17-1012   19.5   70 1813 800 1013
SPF17-1013   19.5   70 1874 800 1074
SPF17-12514   25   84 1976 840 1136
SPF17-12515   25   84 2037 840 1197
SPF17-12516   25   84 2099 840 1259
SPF17-12517   25   84 2160 840 1320
SPF17-1518   29   102 2262 880 1382

SPF 17 (2)
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  65MM(2.5") FLOWQ
    KW HP   m3/h                              L/min 0 8.4 12.6 15 17.1 18.9 20.7 22.5 24 24.9
          0 140 210 250 285 315 345 375 400 415
17 SPF17-1519 11 15 19 H (m) 209 190 171 152 133 114 95 75 57 38
18 SPF17-1520 11 15 20 220 200 180 160 140 120 100 80 60 40
19 SPF17-17521 13 17.5 21 231 210 189 168 147 126 105 84 63 42
20 SPF17-17522 13 17.5 22 242 220 198 176 154 132 110 88 66 44
21 SPF17-17523  13 17.5 23 253 230 207 184 161 138 115 92 69 46
22 SPF17-17524 13 17.5 24 264 240 216 192 168 144 120 96 72 48
23 SPF17-2025  15 20 25 275 250 225 200 175 150 125 100 75 50
24 SPF17-2026 15 20 26 286 260 234 208 182 156 130 104 87 52
25 SPF17-2027 15 20 27 297 270 243 216 189 162 135 108 90 54
26 SPF17-2528 18.5 25 28 308 280 252 224 196 168 140 112 93 56
27 SPF17-2529 18.5 25 29 319 290 261 232 203 174 145 116 78 58
28 SPF17-2530 18.5 25 30 330 300 270 240 210 180 150 120 81 60
29 SPF17-2531 18.5 25 31 341 310 279 248 217 186 155 124 84 62
30 SPF17-2532 18.5 25 32 352 320 288 256 224 192 160 128 96 64
31 SPF17-2533 18.5 25 33 363 330 297 264 231 198 165 132 99 66
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF17-1519   29   102 2323 880 1443
SPF17-1520   29   102 2385 880 1505
SPF17-17521   34   118 2486 920 1566
SPF17-17522   34   118 2548 920 1628
SPF17-17523    34   118 2609 920 1689
SPF17-17524   34   118 2671 920 1751
SPF17-2025    39   148 2762 950 1812
SPF17-2026   39   148 2824 950 1874
SPF17-2027   39   148 2885 950 1935
SPF17-2528   48   188 3027 1030 1997
SPF17-2529   48   188 3088 1030 2058
SPF17-2530   48   188 3150 1030 2120
SPF17-2531   48   188 3211 1030 2181
SPF17-2532   48   188 3273 1030 2243
SPF17-2533   48   188 3334 1030 2304

SPF 17 (3)
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  65MM(2.5") FLOWQ
    KW HP   m3/h                              L/min 0 8.4 12.6 15 17.1 18.9 20.7 22.5 24 24.9
          0 140 210 250 285 315 345 375 400 415
32 SPF17-3034 22 30 34 H (m) 374 340 306 272 238 204 170 136 102 68
33 SPF17-3035 22 30 35 385 350 315 280 245 210 175 140 105 70
34 SPF17-3036 22 30 36 396 360 324 288 252 216 180 144 108 72
35 SPF17-3037 22 30 37 407 370 333 296 259 222 185 148 111 74
36 SPF17-3038 22 30 38 418 380 342 304 266 228 190 152 114 76
37 SPF17-3039 22 30 39 429 390 351 312 273 234 195 156 117 78
38 SPF17-3040 22 30 40 440 400 360 320 280 240 200 160 120 80
39 SPF17-3543 26 35 43 473 430 387 344 301 258 215 172 129 86
40 SPF17-3545 26 35 45 495 450 405 360 315 270 225 180 135 90
41 SPF17-3548 26 35 48 528 480 432 384 336 288 240 192 144 96
42 SPF17-4051 30 40 51 561 510 459 408 357 306 255 204 153 102
43 SPF17-4053 30 40 53 583 530 477 424 371 318 265 212 159 106
44 SPF17-5055 37 50 55 605 550 495 440 385 330 275 220 165 110
45 SPF17-5058 37 50 58 638 580 522 464 406 348 290 232 174 116
46 SPF17-5060 37 50 60 660 600 540 480 420 360 300 240 180 120
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF17-3034   57   225 3466 1100 2366
SPF17-3035   57   225 3527 1100 2427
SPF17-3036   57   225 3589 1100 2489
SPF17-3037   57   225 3650 1100 2550
SPF17-3038   57   225 3712 1100 2612
SPF17-3039   57   225 3773 1100 2673
SPF17-3040   57   225 3835 1100 2735
SPF17-3543   66   270 4079 1160 2919
SPF17-3545   66   270 4202 1160 3042
SPF17-3548   66   270 4387 1160 3227
SPF17-4051   76   355 4641 1230 3411
SPF17-4053   76   355 4764 1230 3534
SPF17-5055   85   420 4987 1330 3657
SPF17-5058   85   420 5172 1330 3842
SPF17-5060   85   420 5295 1330 3965

SPF 30
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  80MM(3.0") FLOWQ
    KW HP   m3/h                              L/min 0 15.3 21.9 27 31.2 34.2 37.2 39.6 42 44.4
          0 255 365 450 520 570 620 660 700 740
1 SPF30-0302 2.2 3 2 H (m) 22 20 18 16 14 12 10 8 6 4
2 SPF30-0403 3 4 3 33 30 27 24 21 18 15 12 9 6
3 SPF30-0504 4 5 4 44 40 36 32 28 24 20 16 12 8
4 SPF30-7505 5.5 7.5 5 55 50 45 40 35 30 25 20 15 10
5 SPF30-1006 7.5 10 6 66 60 54 48 42 36 30 24 18 12
6 SPF30-1007 7.5 10 7 77 70 63 56 49 42 35 28 21 14
7 SPF30-1008 7.5 10 8 88 80 72 64 56 48 40 32 24 16
8 SPF3O-12509 9.3 12.5 9 99 90 81 72 63 54 45 36 27 18
9 SPF30-12510 9.3 12.5 10 110 100 90 80 70 60 50 40 30 20
10 SPF30-12511 9.3 12.5 11 121 110 99 88 77 66 55 44 33 22
11 SPF30-1512 11 15 12 132 120 108 96 84 72 60 48 36 24
12 SPF30-1513 11 15 13 143 130 117 104 91 78 65 52 39 26
13 SPF30-17514 13 17.5 14 154 140 126 112 98 84 70 56 42 28
14 SPF3O-17515 13 17.5 15 165 150 135 120 105 90 75 60 45 30
15 SPF30-2016 15 20 16 176 160 144 128 112 96 80 64 48 32
16 SPF30-2017 15 20 17 187 170 153 136 119 102 85 68 51 34
17 SPF30-2518 18.5 25 18 198 180 162 144 126 108 90 72 54 36
18 SPF30-2519 18.5 25 19 209 190 171 152 133 114 95 76 57 38
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF30-0302   6.5   28 1126 655 477
SPF30-0403   8.5   36 1272 705 567
SPF30-0504   10   42 1403 740 663
SPF30-7505   14.5   52 1529 770 759
SPF30-1006   19.5   70 1655 800 855
SPF30-1007   19.5   70 1751 800 951
SPF30-1008   19.5   70 1847 800 1047
SPF3O-12509   25   84 1983 840 1143
SPF30-12510   25   84 2079 840 1239
SPF30-12511   25   84 2175 840 1335
SPF30-1512   29   102 2311 880 1431
SPF30-1513   29   102 2407 880 1527
SPF30-17514   34   118 2543 920 1623
SPF3O-17515   34   118 2639 920 1719
SPF30-2016   39   148 2765 950 1815
SPF30-2017   39   148 2861 950 1911
SPF30-2518   48   188 3037 1030 2007
SPF30-2519   48   188 3133 1030 2103

SPF 30 (2)
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  80MM(3.0") FLOWQ
    KW HP   m3/h                              L/min 0 15.3 21.9 27 31.2 34.2 37.2 39.6 42 44.4
          0 255 365 450 520 570 620 660 700 740
19 SPF30-2520 18.5 25 20 H (m) 220 200 180 160 140 120 100 80 60 40
20 SPF30-2521 18.5 25 21 231 210 189 168 147 126 105 88 63 42
21 SPF30-3022 22 30 22 242 220 198 176 154 132 110 92 66 44
22 SPF30-3023 22 30 23 253 230 207 184 161 138 115 96 69 46
23 SPF30-3024 22 30 24 264 240 216 192 168 144 120 84 72 48
24 SPF30-3025 22 30 25 275 250 243 200 175 162 125 100 75 50
25 SPF30-3026 22 30 26 286 260 252 208 182 168 130 104 78 52
26 SPF30-3527 26 35 27 297 270 261 216 189 174 135 108 81 54
27 SPF30-3528 26 35 28 308 280 270 224 196 180 140 112 84 56
28 SPF30-3529 26 35 29 319 290 279 232 203 186 145 116 87 58
29 SPF30-3530 26 35 30 330 300 288 240 210 192 150 120 90 60
30 SPF30-3531 26 35 31 341 310 297 248 217 198 155 124 93 62
31 SPF30-4032 30 40 32 352 320 306 256 224 204 160 128 96 64
32 SPF30-4033 30 40 33 363 330 315 264 231 210 165 132 99 66
33 SPF30-4034 30 40 34 374 340 351 272 238 234 170 136 102 68
34 SPF30-4035 30 40 35 385 350 225 280 245 258 175 140 105 70
35 SPF30-5039 37 50 39 429 390 234 312 273 150 195 156 117 78
36 SPF30-5043 37 50 43 473 430 387 344 301 156 215 172 129 86
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF30-2520   48   188 3229 1030 2199
SPF30-2521   48   188 3325 1030 2295
SPF30-3022   57   225 3491 1100 2391
SPF30-3023   57   225 3587 1100 2487
SPF30-3024   57   225 3683 1100 2583
SPF30-3025   57   225 3779 1100 2679
SPF30-3026   57   225 3875 1100 2775
SPF30-3527   66   270 4031 1160 2871
SPF30-3528   66   270 4127 1160 2967
SPF30-3529   66   270 4223 1160 3063
SPF30-3530   66   270 4319 1160 3159
SPF30-3531   66   270 4415 1160 3255
SPF30-4032   76   355 4581 1230 3351
SPF30-4033   76   355 4677 1230 3447
SPF30-4034   76   355 4773 1230 3543
SPF30-4035   76   355 4869 1230 3639
SPF30-5039   85   420 5353 1330 4023
SPF30-5043   85   420 5737 1330 4407

SPF 46
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  100MM(4.0") FLOWQ
    KW HP   m3/h                              L/min 0 25.8 32.4 39 44.4 49.8 54 57.6 60.9 63.9 66.3 69
          0 430 540 650 740 830 900 960 1015 1065 1105 1150
1 SPF46-0301 2.2 3 1 H (m) 15 12 11 10 9 8 7 6 5 4 3 2
2 SPF46-0402 3 4 2 29 24 22 20 18 16 14 12 10 8 6 4
3 SPF46-7503 5.5 7.5 3 44 36 33 30 27 24 21 18 15 12 9 6
4 SPF46-1004 7.5 10 4 58 48 44 40 36 32 28 24 20 16 12 8
5 SPF46-1005 7.5 10 5 73 60 55 50 45 40 35 30 25 20 15 10
6 SPF46-12506 9.3 12.5 6 87 72 99 60 54 48 42 36 30 24 18 12
7 SPF46-1507 11 15 7 102 84 77 70 63 56 49 42 35 28 21 14
8 SPF46-17508 13 17.5 8 116 96 88 80 72 64 56 48 40 32 24 16
9 SPF46-2009 15 20 9 131 108 99 90 81 72 63 54 45 36 27 18
10 SPF46-2010 15 20 10 145 120 110 100 90 80 70 60 50 40 30 20
11 SPF46-2511 18.5 25 11 160 132 121 110 99 88 77 66 55 44 33 22
12 SPF46-2512 18.5 25 12 174 144 132 120 108 96 84 72 60 48 36 24
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF46-0301   6.5   28 1051 655 396
SPF46-0402   8.5   36 1214 705 509
SPF46-7503   14.5   52 1392 770 622
SPF46-1004   19.5   70 1535 800 735
SPF46-1005   19.5   70 1648 800 848
SPF46-12506   25   84 1801 840 961
SPF46-1507   29   102 1954 880 1074
SPF46-17508   34   118 2107 920 1187
SPF46-2009   39   148 2250 950 1300
SPF46-2010   39   148 2363 950 1413
SPF46-2511   48   188 2556 1030 1526
SPF46-2512   48   188 2669 1030 1639

SPF 46 (2)
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

MOTOR  RATING  STAGE DELIVERY SIZE  100MM(4.0") FLOWQ
KW HP   m3/h                              L/min 0 25.8 32.4 39 44.4 49.8 54 57.6 60.9 63.9 66.3 69
      0 430 540 650 740 830 900 960 1015 1065 1105 11501
22 30 13 H (m) 189 156 143 130 117 104 91 78 65 52 39 26
22 30 14 203 168 154 140 126 112 98 84 70 56 42 28
22 30 15 218 180 165 150 135 120 105 90 75 60 45 30
26 35 16 232 192 176 160 144 128 112 96 80 64 48 32
26 35 17 247 204 187 170 153 136 119 102 85 68 51 34
30 40 18 261 216 198 180 162 144 126 108 90 72 54 36
30 40 19 276 228 209 190 171 152 133 114 95 176 57 38
30 40 20 290 240 220 200 180 160 140 120 100 80 60 40
37 50 21 305 252 231 210 189 168 147 126 105 84 63 42
37 50 22 319 264 242 220 198 176 154 132 110 88 66 44
37 50 23 334 276 253 230 207 184 161 138 115 92 69 46
37 50 24 348 288 264 240 216 192 168 144 120 96 72 48
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF46-3013   57   225 2852 1100 1752
SPF46-3014   57   225 2965 1100 1865
SPF46-3015   57   225 3078 1100 1978
SPF46-3516   66   270 3251 1160 2091
SPF46-3517   66   270 3364 1160 2204
SPF46-4018   76   355 3547 1230 2317
SPF46-4019   76   355 3660 1230 2430
SPF46-4020   76   355 3773 1230 2543
SPF46-5021   85   420 3986 1330 2656
SPF46-5022   85   420 4099 1330 2769
SPF46-5023   85   420 4212 1330 2882
SPF46-5024   85   420 4325 1330 2995

SPF 60
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  100MM(4.0") FLOWQ
    KW HP   m3/h                              L/min 0 24.6 34.5 45 52.5 55.5 64.5 69.6 73.5 63.9 81 84
          0 410 550 750 880 950 1050 1160 1230 1065 1350 1400
1 SPF60-0301 2.2 3 1 H (m) 14 112 11 10 9 8 7 6 5 4 3 2
2 SPF60-0502 3.7 5 2 28 24 22 20 18 16 14 12 10 8 6 4
3 SPF60-7503 5.5 7.5 3 43 36 33 30 27 24 21 18 15 12 9 6
4 SPF60-1004 7.5 10 4 57 48 44 40 36 32 28 24 20 16 12 8
5 SPF60-12505 9.3 12.5 5 71 60 55 50 45 40 35 30 25 20 15 10
6 SPF60-1506 11 15 6 85 72 66 60 54 48 42 36 30 24 18 12
7 SPF60-17507 13 17.5 7 99 84 77 70 63 56 49 42 35 28 21 14
8 SPF60-200S 15 20 8 114 96 88 80 72 64 56 48 40 32 24 16
9 SPF60-2509 18.5 25 9 128 108 99 90 81 72 63 54 45 36 27 18
10 SPF60-2510 18.5 25 10 142 120 110 100 90 80 70 60 50 40 30 20
11 SPF60-3011 22 30 11 156 132 121 110 99 88 77 66 55 44 33 22
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF60-0301   6.5   28 1051 655 396
SPF60-0502   10   42 1249 740 509
SPF60-7503   14.5   52 1392 770 622
SPF60-1004   19.5   70 1535 800 735
SPF60-12505   25   84 1688 840 848
SPF60-1506   29   102 1841 880 961
SPF60-17507   34   118 1994 920 1074
SPF60-200S   39   148 2137 950 1187
SPF60-2509   48   188 2330 1030 1300
SPF60-2510   45   185 2443 1030 1413
SPF60-3011   57   225 2626 1100 1526

SPF 60 (2)
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  100MM(4.0") FLOWQ
    KW HP   m3/h                              L/min 0 24.6 34.5 45 52.5 55.5 64.5 69.6 73.5 63.9 81 84
          0 410 550 750 880 950 1050 1160 1230 1065 1350 1400
12 SPF60-3012 22 30 12 H (m) 170 144 132 120 108 96 84 72 60 48 36 24
13 SPF60-3513 26 35 13 185 156 143 130 117 104 91 78 65 52 39 26
14 SPF60-3514 26 35 14 199 168 154 140 126 112 98 84 70 56 42 28
15 SPF60-3515 26 35 15 213 180 165 150 135 120 105 90 75 60 45 30
16 SPF60-4016 30 40 16 227 192 176 160 144 128 112 96 80 64 48 32
17 SPF60-4017 30 40 17 241 204 187 170 153 136 119 102 85 68 51 34
18 SPF60-5018 37 50 18 256 216 198 180 162 144 126 108 90 72 54 36
19 SPF60-5019 37 50 19 270 228 209 190 171 152 133 114 95 76 57 38
20 SPF60-5020 37 50 20 284 240 220 200 180 160 140 120 100 80 60 40
21 SPF60-5021 37 50 21 298 252 231 210 189 168 147 126 105 84 63 42
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF60-3012   57   225 2739 1100 1639
SPF60-3513   66   270 2912 1160 1752
SPF60-3514   66   270 3025 1160 1865
SPF60-3515   66   270 3138 1160 1978
SPF60-4016   76   355 3321 1230 2091
SPF60-4017   76   355 3434 1230 2204
SPF60-5018   85   420 3647 1330 2317
SPF60-5019   85   420 3760 1330 2430
SPF60-5020   85   420 3873 1330 2543
SPF60-5021   85   420 3986 1330 2656

SPF 77 (2)
8" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V8 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  125MM(5.0") FLOWQ
    KW HP   m3/h                              L/min 0 21 30 39 48 57 66 75 84 93 102
          0 350 500 650 800 950 1100 1250 1400 1550 1700
1 SPF77-7501 5.5 7.5 1 H (m) 20 19 18 17 16 15 14 13 11 9 6
2 SPF77-1002 7.5 10 2 40 38 37 34 32 30 28 25 22 17 12
3 SPF77-1503 11 15 3 60 58 56 52 48 45 42 38 33 26 18
4 SPF77-2004 15 20 4 80 77 74 69 64 60 56 50 43 35 24
5 SPF77-2505 18.5 25 5 100 96 93 86 80 75 70 63 54 44 30
6 SPF77-3006 22 30 6 120 115 112 103 96 90 84 76 65 52 36
7 SPF77-3507 26 35 7 140 134 130 120 112 105 98 88 76 61 42
8 SPF77-4008 30 40 8 160 153 149 137 128 120 112 101 87 70 48
9 SPF77-4009 30 40 9 180 173 167 155 144 135 126 113 98 78 54
10 SPF77-5010 37 50 10 200 192 186 172 160 150 140 126 109 87 60
11 SPF77-5011 37 50 11 220 211 205 189 176 165 154 138 119 96 66
12 SPF77-6012 45 60 12 240 230 223 206 192 180 168 151 130 105 72
13 SPF77-7513 55 75 13 260 249 242 223 208 195 182 164 141 113 78
14 SPF77-7514 55 75 14 280 268 260 240 224 210 196 176 152 122 84
15 SPF77-7515 55 75 15 300 288 279 258 240 225 210 189 163 131 90
16 SPF77-9016 67 90 16 320 307 298 275 256 240 224 201 174 139 96
17 SPF77-9017 67 90 17 340 326 316 292 272 255 238 214 185 148 102
18 SPF77-9018 67 90 18 360 345 335 309 288 270 252 227 195 157 108
19 SPF17-10019 75 100 19 380 364 353 326 304 285 266 239 206 166 114
20 SPF77-10020 75 100 20 400 383 372 343 320 300 280 252 217 174 120
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF77-7501       49 1356 770 586
SPF77-1002   19.5   66 1658 944 714
SPF77-1503   29   99 1836 994 842
SPF77-2004   39   132 2014 1044 970
SPF77-2505   48   163 2182 1084 1098
SPF77-3006   57   194 2350 1124 1226
SPF77-3507   66   225 2518 1164 1354
SPF77-4008   76   262 2676 1194 1482
SPF77-4009   76   262 2804 1194 1610
SPF77-5010   85   286 3002 1264 1738
SPF77-5011   85   286 3130 1264 1866
SPF77-6012   100   322 3338 1344 1994
SPF77-7513   120   416 3616 1494 2122
SPF77-7514   120   416 3744 1494 2250
SPF77-7515   120   416 3872 1494 2378
SPF77-9016   144   538 4120 1614 2506
SPF77-9017   144   538 4248 1614 2634
SPF77-9018   144   538 4376 1614 2762
SPF17-10019   158   602 4554 1664 2890
SPF77-10020   158   602 4682 1664 3018

SPF 95
8" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V8 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  125MM(5.0") FLOWQ
    KW HP   m3/h                              L/min 0 27 40.8 54 72 90 108 126
          0 450 680 900 1200 1500 1800 2100
1 SPF95-7501 5.5 7.5 1 H (m) 21 20 19 17 15 13 10 6
2 SPF95-1002 7.5 10 2 42 40 37 34 30 25 19 11
3 SPF95-17503 13 17.5 3 62 60 56 50 44 38 29 17
4 SPF95-2504 18.5 25 4 83 80 74 67 59 51 38 22
5 SPF95-3005 22 30 5 104 100 93 84 74 64 48 28
6 SPF95-3506 26 35 6 125 120 111 101 89 76 57 33
7 SPF95-4007 30 40 7 145 140 130 118 103 89 67 39
8 SPF95-5008 37 50 8 166 160 148 134 118 102 76 44
9 SPF95-5009 37 50 9 187 180 167 151 133 114 86 50
10 SPF95-6010 45 60 10 208 200 185 168 148 127 95 55
11 SPF95-7511 55 75 11 228 220 204 185 162 140 105 61
12 SPF95-7512 55 75 12 249 240 222 202 177 152 114 66
13 SPF95-7513 55 75 13 270 260 241 218 192 165 124 72
14 SPF95-9014 67 90 14 291 280 259 235 207 178 133 77
15 SPF95-10015 75 100 15 311 300 278 252 221 191 143 83
16 SPF95-10016 75 100 16 332 320 296 269 236 203 152 88
17 SPF95-10017 75 100 17 353 340 315 286 251 216 162 94
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF95-7501   14.5   49 1356 770 586
SPF95-1002   19.5   66 1658 944 714
SPF95-17503   34   116 1866 1024 842
SPF95-2504   48   163 2054 1084 970
SPF95-3005   57   194 2222 1124 1098
SPF95-3506   66   225 2390 1164 1226
SPF95-4007   76   262 2548 1194 1354
SPF95-5008   85   286 2746 1264 1482
SPF95-5009   85   286 2874 1264 1610
SPF95-6010   100   322 3082 1344 1738
SPF95-7511   120   416 3360 1494 1866
SPF95-7512   120   416 3488 1494 1994
SPF95-7513   120   416 3616 1494 2122
SPF95-9014   144   538 3864 1614 2250
SPF95-10015   158   602 4042 1664 2378
SPF95-10016   158   602 4170 1664 2506
SPF95-10017   158   602 4298 1664 2634

SPF 111
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  125MM(5.0") FLOWQ
    KW HP   m3/h                              L/min 0 10.2 15 19.2 23.1 25.5 29.1 31.8 34.5 37.5
          0 170 250 320 385 425 485 530 575 625
1 SPF111-0504 3.7 5 4 H (m) 60 52 48 44 40 36 28 20 12 4
2 SPF111-0605 4.5 6 5 75 65 60 55 50 45 35 25 15 5
3 SPFll1-7506 5.5 7.5 6 90 78 72 66 60 54 42 30 18 6
4 SPFll1-1008 7.5 10 8 120 104 96 88 80 72 56 40 24 8
5 SPF111-1009 7.5 10 9 135 117 108 99 90 81 63 45 27 9
6 SPF111-12511 9.3 12.5 11 165 143 132 121 110 99 77 55 33 11
7 SPF111-1513 11 15 13 191 169 156 143 130 117 91 65 39 13
8 SPF111-17515 13 17.5 15 221 195 180 165 150 135 105 75 45 15
9 SPF111-2017 15 20 17 250 221 204 187 170 153 119 85 51 17
10 SPF111-2521 18.5 25 21 309 273 252 231 210 189 147 105 63 21
11 SPFlll-3025 22 30 25 368 325 300 275 250 225 175 125 75 25
12 SPFlll-4030 30 40 30 441 390 360 330 300 270 210 150 90 30
13 SPF111-5035 37 50 35 515 455 420 385 350 315 245 175 105 35
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
SPF111-0504   10   42 1359 740 619
SPF111-0605   12   50 1484 795 689
SPFll1-7506   14.5   52 1529 770 759
SPFll1-1008   19.5   70 1699 800 899
SPF111-1009   19.5   70 1769 800 969
SPF111-12511   25   84 1949 840 1109
SPF111-1513   29   102 2129 880 1249
SPF111-17515   34   118 2309 920 1389
SPF111-2017   39   148 2449 920 1529
SPF111-2521   48   188 2759 950 1809
SPFlll-3025   57   225 3189 1100 2089
SPFlll-4030   76   355 3669 1230 2439
SPF111-5035   85   420 4119 1330 2789

SPF 135
6" STAINLESS STEEL BOREWELL SUBMERSIBLE PUMPSET
PERFORMANCE CHART FOR S.S. V6 PUMPSET SUITABLE FOR 100MM BOREWELL

SR.        NO. MODEL MOTOR  RATING  STAGE DELIVERY SIZE  125MM(5.0") FLOWQ
    KW HP   m3/h                              L/min 0 13.2 18.6 23.4 28.2 31.8 37.5 40.8 43.5 46.2
          0 220 310 390 470 530 625 680 725 770
1 SPF135-0302 2.2 3 2 H (m) 31 28 26 24 22 20 16 12 8 4
2 SPF135-0503 3.7 5 3 46 42 39 36 33 30 24 18 12 6
3 SPF135-0604 4.5 6 4 61 56 52 48 44 40 32 24 16 8
4 SPF135-7505 5.5 7.5 5 77 70 65 60 55 50 40 30 20 10
5 SPF135-1006 7.5 10 6 92 84 78 72 66 60 48 36 24 12
6 SPF135-1007 7.5 10 7 107 98 91 84 77 70 56 42 28 14
7 SPF135-12508 9.3 12.5 8 122 112 104 96 88 80 64 48 32 16
8 SPFl35-12509 9.3 12.5 9 138 126 117 108 99 90 72 54 36 18
9 SPF135-1510 11 15 10 153 140 130 120 110 100 80 60 40 20
10 SPF135-1511 11 15 11 168 154 143 132 121 110 88 66 44 22
11 SPF135-17512 13 17.5 12 184 168 156 144 132 120 96 72 48 24
12 SPF135-17513 13 17.5 13 199 182 169 156 143 130 104 78 52 26
13 SPF135-2014 15 20 14 214 196 182 168 154 140 112 84 56 28
14 SPF135-2015 15 20 15 230 210 195 180 165 150 120 90 60 30
15 SPF135-2516 18.5 25 16 245 224 208 192 176 160 128 96 64 32
16 SPF135-2518 18.5 25 18 275 252 234 216 198 180 144 108 72 36
17 SPF135-3020 22 30 20 306 280 260 240 220 200 160 120 80 40
18 SPF135-3021 22 30 21 321 294 273 252 231 210 168 126 84 42
19 SPF135-4025 30 40 25 382 350 325 300 275 250 200 150 100 50
20 SPF135-5030 37 50 30 459 420 390 360 330 300 240 180 120 60
MODEL FUll lOAD START DIMENSIONS
CURRENT CURRENT (mm)
(A) (A)  A B C
1 PHASE 3 PHASE 1 PHASE  3 PHASE  3 PHASE 3 PHASE
    6.5   28 1134 655 479
    10   42 1289 740 549
    12   50 1414 795 619
    14.5   52 1459 770 689
    19.5   70 1559 800 759
    19.5   70 1629 800 829
    25   84 1739 840 899
    25   84 1809 840 969
    29   102 1919 880 1039
    29   102 1989 880 1109
    34   118 2099 920 1179
    34   118 2169 920 1249
    39   148 2269 950 1319
    39   148 2339 950 1389
    48   188 2489 1030 1459
    48   188 2629 1030 1599
    57   225 2839 1100 1739
    57   225 2909 1100 1809
    76   355 3319 1230 2089
    85   420 3769 1330 2439
Read Less
