CPVC Schedule 40 & 80 Pipes

Sagar Strong'N'Safe CPVC plumbing system is designed for hot and cold water supply in residential, commercial and public projects, high and low rise buildings, corporate houses and academic institutes, solar heater applications, etc. It is suitable for all uptakes and down take lines, terrace looping, and concealed pipe work applications. The choice of the raw material, the structural accuracy, and the strict quality control impart a high degree of reliability to Sagar Strong'N'Safe CPVC. Sagar Strong'N'Safe is the most suitable, easy, and economic solution for the transportation and distribution of potable water. It is technically much superior, cost-effective, and offers many advantages over GI and other conventional systems.

Enquire Now
Download Catalogue
  • Applications
  • Benefits
  • Product Range
  • Technical Details

Applications:

  • Building Construction.
  • Sanitary Application.
  • Portable Water Supply.
  • Industrial Application.

Note:

  • Non Standard wall thickness, length and color can also be offered If desired.
  • Pipes can also be offered as per DIN 8062, ISO 4422-2, BS 3505/6.

For HOT & COLD Water Application

Benefits:

Pre-COS

Our product made from PVC, CPVC, PE & PPR raw materials which differ as follows from many of the pipes, hoses and fittings commercially available.

  • Higher mechanical stability.
  • Improved chemical stability.
  • Higher softening points.
  • Greater residual strength at high temperatures.
  • Higher compression strength.
  • Greater safety due to material stability.
  • Environment stress crack, corrosion, frost, kink & rot resistant.
Interior smoothness

Our product has outstanding interior smoothness and is thus optimized for flow. They have following advantages:

  • Very high delivery rate.
  • Low pressure loss.
  • Reduction of blower power requirements.
  • Lower operating costs.
Lead Free

As lead is certainly toxic, many questions have raised regarding lead content in pipes & fittings, harming environment or human health hence being hygienic conscious the pipes & fittings are specially featured lead free.

Hygienic

The pipes & fittings being free from corrosion & negative biological effect, taste & odor nature, it does not change the water quality.

Hygienic

The pipes & fittings being free from corrosion & negative biological effect, taste & odor nature, it does not change the water quality.

Shock Proof

The pipe is non conductor of heat & electricity hence, they have following advantages:

  • Reduce heat loss.
  • No insulation required.
Quick assembly & maintenance free

The pipes, hoses & fittings are light in weight which results in extensive saving of time and laboring being Abrasion/Chemical resistance, free from rusting, pitting or scaling and maintenance-free.

Strong & Stiff

The pipes are specially designed for desire application which meets the required results as follows:

  • Superior strength with stiffness.
  • Flexible Compared to strength & stiffness.
Ultraviolet Resistance

The pipes, hoses & fittings are furnished with extra benefits of UV stabilizers. They have the following advantages:

  • Resists direct connection of UV rays to internal transporting material.
  • No discoloring of pipe in external atmosphere.
Chemical Resistance

The pipes & hoses have special characteristics which offers excellent resistance to great number of chemical like strong mineral acids, bases, & toxic chemicals.

CPVC Fittings 40 & 80 sch

Elbow
Tee
Coupler
M.T.A
F.T.A
Ball Valve

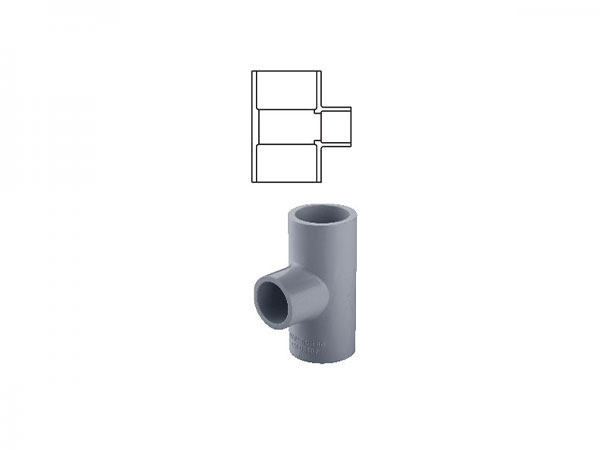

Reducer Tee
Reducer Elbow
Brass Elbow
Brass Tee
Brass M.T.A
Brass F.T.A.
Union
Reducer Bush
Reducer Socket
Tank Nipple
End Cap
Elbow 45
Cross Tee
Solvent Cement

Outside Diameter & Wall Thickness for SAGAR® Schedules 40 & 80 CPVC 4120 Pipe as Per ASTM F-441:

Nominal Size Outside Diameter (mm) Wall Thickness (mm)
Schedule 40		 Wall Thickness (mm)
Schedule 80
(inch) (mm) Average Tolerance Min Tolerance Min Tolerance
½ 15 0.840 ± 0.004 (0.10) ± 0.004 (0.10) ± 0.004 (0.10) ± 0.004 (0.10) ± 0.004 (0.10)
¾ 20 1.050 ± 0.004 (0.10) ± 0.004 (0.10) ± 0.004 (0.10) ± 0.004 (0.10) ± 0.004 (0.10)
1 25 1.315 ± 0.005 (0.13) ± 0.005 (0.13) ± 0.005 (0.13) ± 0.005 (0.13) ± 0.005 (0.13)
1¼ 32 1.660 ± 0.005 (0.13) ± 0.005 (0.13) ± 0.005 (0.13) ± 0.005 (0.13) ± 0.005 (0.13)
1½ 40 1.900 ± 0.006 (0.15) ± 0.006 (0.15) ± 0.006 (0.15) ± 0.006 (0.15) ± 0.006 (0.15)
2 50 2.375 ± 0.006 (0.15) ± 0.006 (0.15) ± 0.006 (0.15) ± 0.006 (0.15) ± 0.006 (0.15)
2½ 65 2.875 ± 0.006 (0.15) ± 0.006 (0.15) ± 0.006 (0.15) ± 0.006 (0.15) ± 0.006 (0.15)
3 80 3.500 ± 0.007 (0.18) ± 0.007 (0.18) ± 0.007 (0.18) ± 0.007 (0.18) ± 0.007 (0.18)
4 100 4.500 ± 0.008 (0.20) ± 0.008 (0.20) ± 0.008 (0.20) ± 0.008 (0.20) ± 0.008 (0.20)
5 125 5.563 ± 0.010 (0.25) -- -- ± 0.010 (0.25) ± 0.010 (0.25)
6 150 6.625 ± 0.011 (0.28) -- -- ± 0.011 (0.28) ± 0.011 (0.28)
8 200 8.625 ± 0.015 (0.38) -- -- ± 0.015 (0.38) ± 0.015 (0.38)
10 250 10.750 ± 0.015 (0.38) -- -- ± 0.015 (0.38) ± 0.015 (0.38)
12 300 12.750 ± 0.015 (0.38) -- -- ± 0.015 (0.38) ± 0.015 (0.38)

Pressure Rating @ 73 F (23 C) for SAGAR CPVC 4120, Schedule 40 & 80 Piping System as per ASTM F 441

Nominal Size Pressure Required for Test* Minimum Brust Pressure*
Schedule 40 Schedule 80 Schedule 40 Schedule 80
(inch) (mm) psi kPa psi kPa psi kPa psi kPa
½ 15 1250 8.620 1780 12.270 1910 13.170 2720 18.760
¾ 20 1010 6.960 1440 9.930 1540 10.620 2200 15.170
1 25 950 6.550 1320 9.100 1440 9.930 2020 13.930
1¼ 32 770 5.310 1090 7.520 1180 8.140 1660 11.450
1½ 40 690 4.760 990 6.830 1060 7.310 1510 10.410
2 50 580 4.000 850 5.860 890 6.140 1290 8.890
2½ 65 640 4.410 890 6.140 970 6.690 1360 9.380
3 80 590 4.070 790 5.450 840 5.790 1200 8.270
4 100 470 3.240 680 4.690 710 5.310 1040 7.170
5 125 -- -- 610 4.210 -- -- 930 6.410
6 150 -- -- 590 4.070 -- -- 890 6.140
8 200 -- -- 520 3.590 -- -- 790 5.450
10 250 -- -- 490 3.380 -- -- 750 5.170
12 300 -- -- 480 3.310 -- -- 730 5.030
