uPVC Pressure Pipes

Sagar Strong N Safe uPVC pressure pipes and fittings in diameter ranging from 20mm to 400mm and in different pressure ratings from 2.5 kg/cm2 to 16 kg/cm2 conforming to different national and international standards. uPVC pressure pipes are available in two different jointing systems namely Solvent cement jointing and Quick Fix/ Rubber Ring Jointing

Enquire Now
Download Catalogue
  • Applications
  • PVC Pressure Fittings & Adhesives
  • Benefits
  • Product Range
  • Technical Details

Applications:

  • Used for conveyance of water in drip/sprinkler irrigation systems, lift irrigation systems, surface irrigation systems, subsoil drainage system, potable water supply systems, rising main and distribution lines.

Note

  • Non Standard wall thickness, length and color can also be offered, If desired.
  • Pipes can also be offered as per DIN 8062, ASTM D 1785, ISO 1452-2, BS EN ISO 1452, BS 3506.
  • Ringfit joining system also can be provided up on request.

Features

  • Manufactured from high quality PVC compound.
  • Excellent corrosion and chemical resistance to most acidic and alkaline solutions.
  • Light weight.
  • Easy to handle and transport.
  • Excellent flow characteristics.
  • Good Self extinguishing quality.
  • Smooth inner wall minimizes frictional losses and scaling due to precipitation.
  • Available in sizes from 20 mm (½") to 315 mm (12").
  • Also available fabricated fitting of various types & range on demand.

Applications

  • Used for variety of applications like agriculture, irrigation, water supply, industrial process lines, swimming pools and fire fighting mains etc.

Benefits:

Pre-COS

Our product made from PVC, CPVC, PE & PPR raw materials which differ as follows from many of the pipes, hoses and fittings commercially available.

  • Higher mechanical stability.
  • Improved chemical stability.
  • Higher softening points.
  • Greater residual strength at high temperatures.
  • Higher compression strength.
  • Greater safety due to material stability.
  • Environment stress crack, corrosion, frost, kink & rot resistant.
Interior smoothness

Our product has outstanding interior smoothness and is thus optimized for flow. They have following advantages:

  • Very high delivery rate.
  • Low pressure loss.
  • Reduction of blower power requirements.
  • Lower operating costs.
Lead Free

As lead is certainly toxic, many questions have raised regarding lead content in pipes & fittings, harming environment or human health hence being hygienic conscious the pipes & fittings are specially featured lead free.

Hygienic

The pipes & fittings being free from corrosion & negative biological effect, taste & odor nature, it does not change the water quality.

Industrial

Our pipes, hoses & fittings are specially design for industrial usage. Our product gives best performance while use in the factory. Due to high durability & flexibility our pipes & hoses are famous for industrial usage.

Shock Proof

The pipe is non conductor of heat & electricity hence, they have following advantages:

  • Reduce heat loss.
  • No insulation required.
Quick assembly & maintenance free

The pipes, hoses & fittings are light in weight which results in extensive saving of time and laboring being Abrasion/Chemical resistance, free from rusting, pitting or scaling and maintenance-free.

Strong & Stiff

The pipes are specially designed for desire application which meets the required results as follows:

  • Superior strength with stiffness.
  • Flexible Compared to strength & stiffness.
Ultraviolet Resistance

The pipes, hoses & fittings are furnished with extra benefits of UV stabilizers. They have the following advantages:

  • Resists direct connection of UV rays to internal transporting material.
  • No discoloring of pipe in external atmosphere.
Chemical Resistance

The pipes & hoses have special characteristics which offers excellent resistance to great number of chemical like strong mineral acids, bases, & toxic chemicals.

Coupler
Elbow90°
Equal Tee 90°
End Cap (threaded)
F.T.A.
Door Elbow
End Cap (plain)
M.T.A.
Reducer Coupling
Reducer Bush
Service Saddle
Door Tee

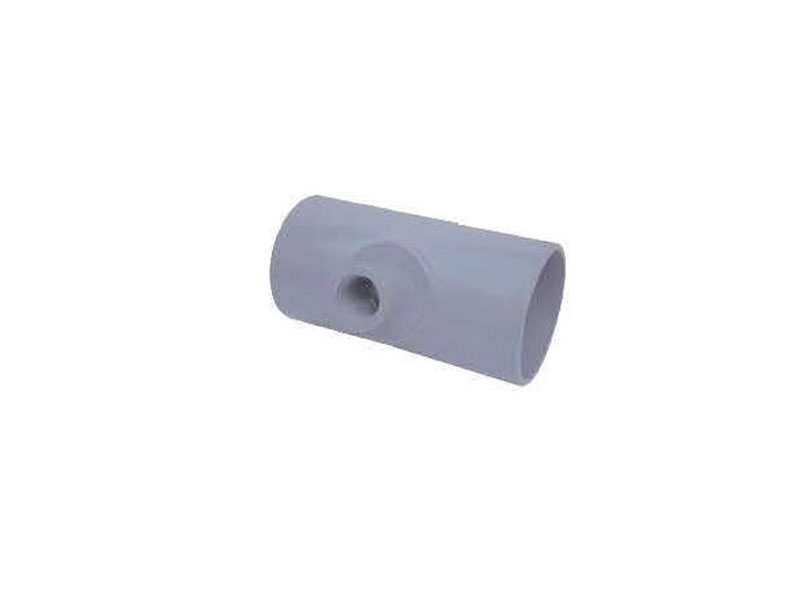

Reducer Tee
(plain & Threaded)
Flange
Tail Piece
Reducing F.T.A.
Long Bend
Side Door Elbow
Long Bend
Side Door Tee
Solvent Cement

SAGAR® PVC Pressure Pipes as per IS:4985

Normal
Outside
Diameter (D)		 Mean Outside Minimum Wall Thickness (mm)
Dia. (mm) 2.5 kg/cm² 4 kg/cm² 6 kg/cm² 8 kg/cm² 10 kg/cm² 12.5 kg/cm²
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
20 20.0 20.3 - - - - - - - - 1.1 1.5 1.4 1.8
25 25.0 25.3 - - - - - - 1.2 1.6 1.4 1.8 1.7 2.1
32 32.0 32.3 - - - - - - 1.5 1.9 1.8 2.2 2.2 2.7
40 40.0 40.3 - - - - 1.4 1.8 1.8 2.2 2.2 2.7 2.8 3.3
50 50.0 50.3 - - - - 1.7 2.1 2.3 2.8 2.8 3.3 3.4 4.0
63 63.0 63.3 - - 1.5 1.9 2.2 2.7 2.8 3.3 3.5 4.1 4.3 5.0
75 75.0 75.3 - - 1.8 2.2 2.6 3.1 3.4 4.0 4.2 4.9 5.1 5.9
90 90.0 90.3 1.3 1.7 2.1 2.6 3.1 3.7 4.0 4.6 5.0 5.7 6.1 7.1
110 110.0 110.4 1.6 2.0 2.5 3.0 3.7 4.3 4.9 5.6 6.1 7.1 7.5 8.7
125 125.0 125.4 1.8 2.2 2.9 3.4 4.3 5.0 5.6 6.4 6.9 8.0 8.5 9.8
140 140.0 140.5 2.0 2.4 3.2 3.8 4.8 5.5 6.3 7.3 7.7 8.9 9.5 11.0
160 160.0 160.5 2.3 2.8 3.7 4.3 5.4 6.2 7.2 8.3 8.8 10.2 10.9 12.6
180 180.0 180.6 2.6 3.1 4.2 4.9 6.1 7.1 8.0 9.2 9.9 11.4 12.2 14.1
200 200.0 200.6 2.9 3.4 4.6 5.3 6.8 7.9 8.9 10.3 11.0 12.7 13.6 15.7
225 225.0 225.7 3.3 3.9 5.2 6.0 7.6 8.8 10.0 11.5 12.4 14.3 15.3 17.6
250 250.0 250.8 3.6 4.2 5.7 6.5 8.5 9.8 11.2 12.9 13.8 15.9 17.0 19.6
280 280.0 280.9 4.1 4.8 6.4 7.4 9.5 11.0 12.5 14.4 15.4 17.8 19.0 21.9
315 315.0 316.0 4.6 5.3 7.2 8.3 10.7 12.4 14.0 16.1 17.3 19.9 21.4 24.7
355 355.0 356.0 5.1 5.9 8.1 9.4 12.0 13.8 15.8 18.2 19.6 22.6 24.1 27.8
400 400.0 401.2 5.8 6.7 9.1 10.5 13.5 15.6 17.8 20.5 22.0 25.3 27.2 31.3
450 450.0 451.4 6.5 7.5 10.3 11.9 15.2 17.5 20.0 23.0 24.8 28.6 30.5 35.1
500 500.0 501.5 7.2 8.3 11.4 13.2 16.9 19.5 22.3 25.7 27.5 31.7 33.9 39.0
560 560.0 561.7 8.1 9.4 12.8 14.8 18.9 21.8 24.9 28.7 30.8 35.5 38.0 43.7
Read More

PVC Pressure Fittings & Adhesives

Nominal Dia. Minimun Socket Length Mean Socket Internal Dia. at Mid Point of Socket Length
Min. Max.
16 14 16.1 16.3
20 16 20.1 20.3
25 19 25.1 25.3
32 22 32.1 32.3
40 26 40.1 40.3
50 31 50.1 50.3
63 38 63.1 63.3
75 44 75.1 75.3
90 51 90.1 90.3
110 61 110.1 110.4
125 69 125.1 125.4
140 76 140.1 140.5
160 86 160.2 160.5
180 96 180.2 180.5
200 106 200.3 200.6
225 118.5 225.3 225.7
250 131.0 250.4 250.8
280 146.0 280.4 280.9
315 163.5 315.4 316.0
Read Less
